Bill Hollings has announced the release of the MoltenVK Vulkan SDK 1.3.268 after two release candidates.

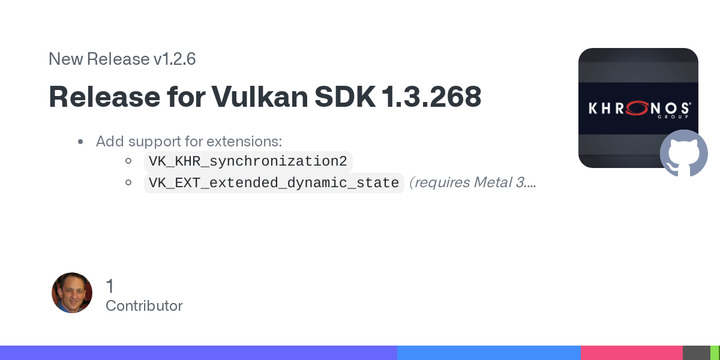

MoltenVK Release for Vulkan SDK 1.3.268

  • Add support for extensions:
    • VK_KHR_synchronization2
    • VK_EXT_extended_dynamic_state (requires Metal 3.1 for VK_DYNAMIC_STATE_VERTEX_INPUT_BINDING_STRIDE)
    • VK_EXT_extended_dynamic_state2
  • Fix rare case where vertex attribute buffers are not bound to Metal when no other bindings change between pipelines.
  • Ensure objects retained for life of MTLCommandBuffer during vkCmdBlitImage() & vkQueuePresentKHR().
  • Fix case where a CAMetalDrawable with invalid pixel format causes onscreen flickering.
  • Fix deadlock when reporting debug message on MVKInstance destruction.
  • Fix MSL code used in vkCmdBlitImage() on depth-stencil formats.
  • Improve behavior of swapchain image presentation stalls caused by Metal regression.
  • VkPhysicalDeviceLimits::timestampPeriod set to 1.0 on Apple GPUs, and calculated dynamically on non-Apple GPUs.
  • Add MVKConfiguration::timestampPeriodLowPassAlpha and environment variable
    MVK_CONFIG_TIMESTAMP_PERIOD_LOWPASS_ALPHA, to add a configurable lowpass filter
    for varying VkPhysicalDeviceLimits::timestampPeriod on non-Apple GPUs.
  • Add several additional performance trackers, available via logging, or the mvk_private_api.h API.
  • Deprecate MVK_DEBUG env var, and add MVK_CONFIG_DEBUG env var to replace it.
  • Update MVK_CONFIGURATION_API_VERSION and MVK_PRIVATE_API_VERSION to 38.
  • Update dependency libraries to match Vulkan SDK 1.3.268.
  • Update to latest SPIRV-Cross:
    • MSL: Workaround Metal 3.1 regression bug on recursive input structs.
    • MSL: fix extraction of global variables, in case of atomics.
    • MSL: Workaround bizarre crash on macOS.
    • MSL: runtime array over argument buffers.
    • MSL: Make rw texture fences optional.
    • MSL: Prevent RAW hazards on read_write textures.


Release Release for Vulkan SDK 1.3.268 · KhronosGroup/MoltenVK
